Lifestyle has also brought up the need to apply a single glass (glass to glass) in spaces. Systems that use the smallest and smallest thickness profiles, such as colored glass, sand glass, etc., create maximum transparency and smooth lines.

The perfect visual richness brought by transparency and simplicity.

The system is designed with visual simplicity in mind for intense work pace. This is solved by the minimum profile thickness of the walls, ceiling and floor, ensuring the simplicity of the space.

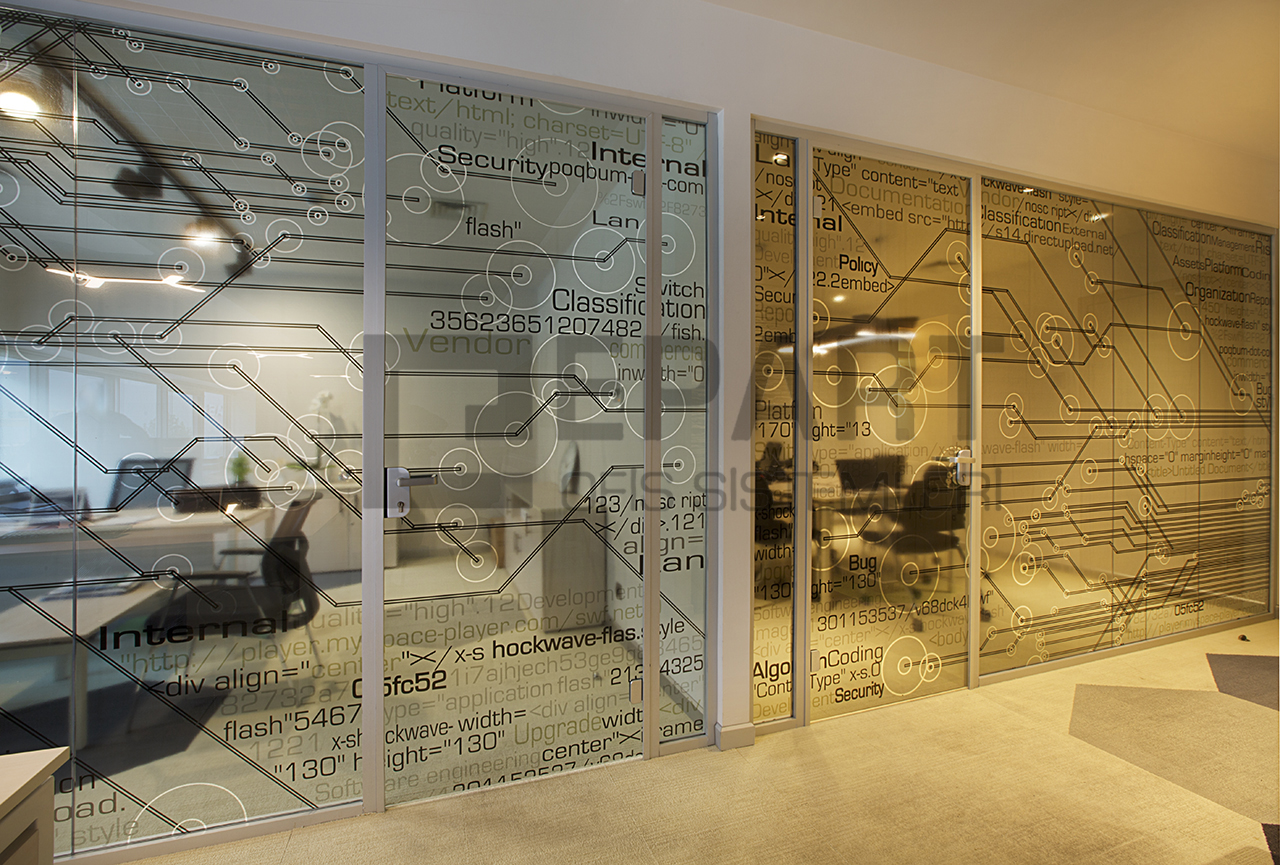

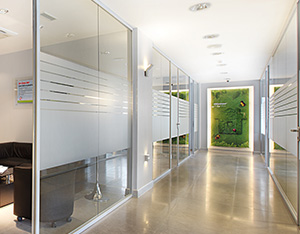

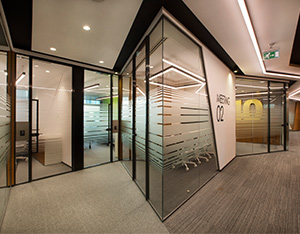

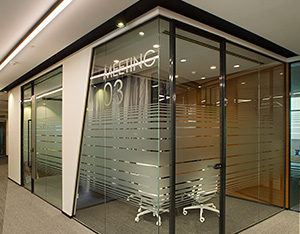

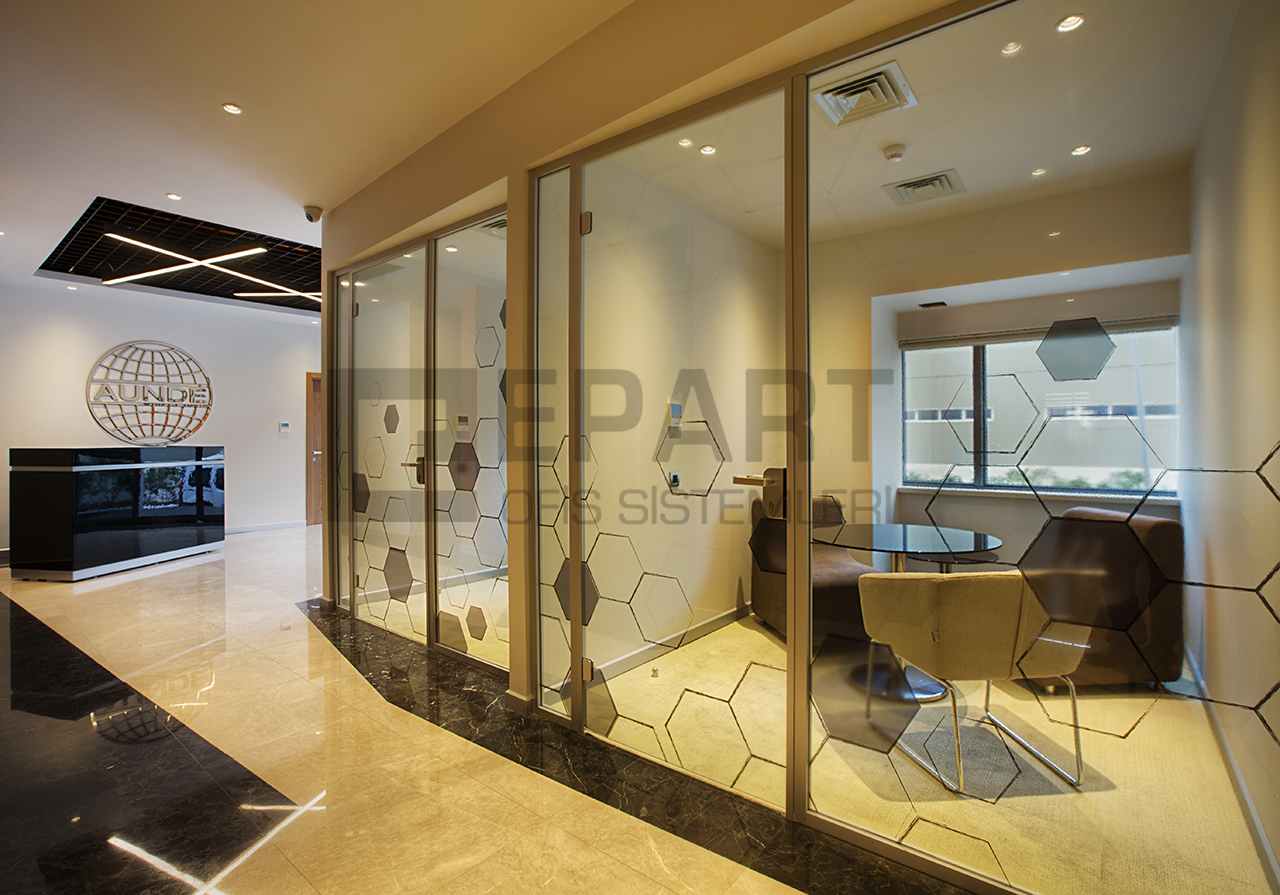

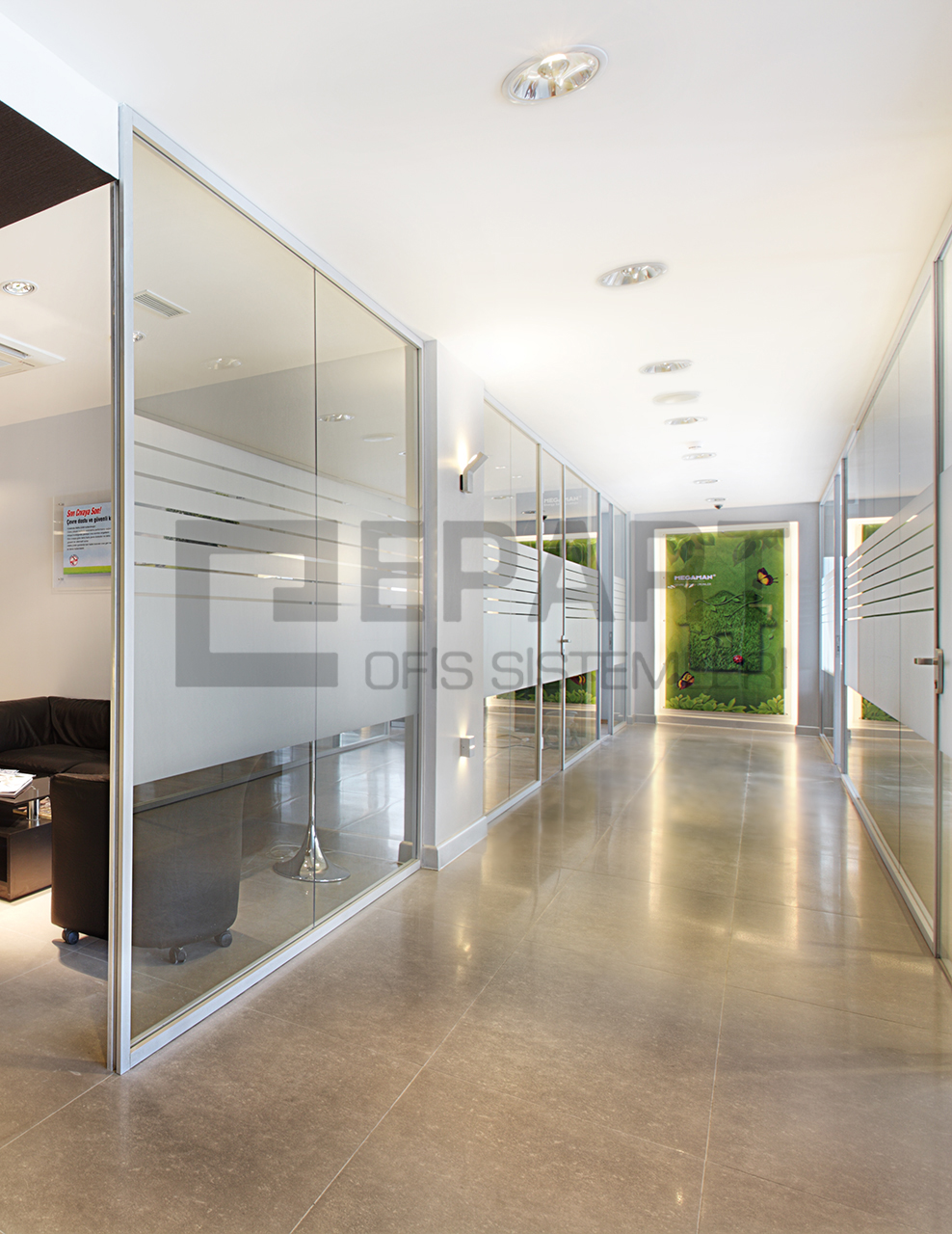

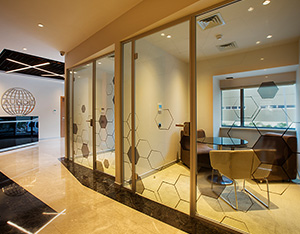

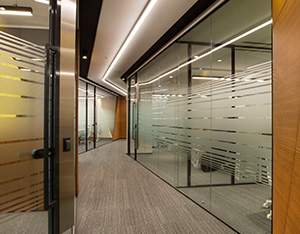

You can use colored glass covers and special foil patterns for your projects to create an aesthetic and efficient working environment.

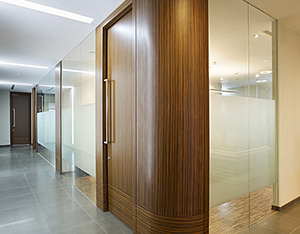

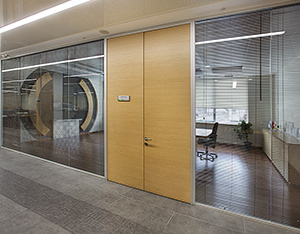

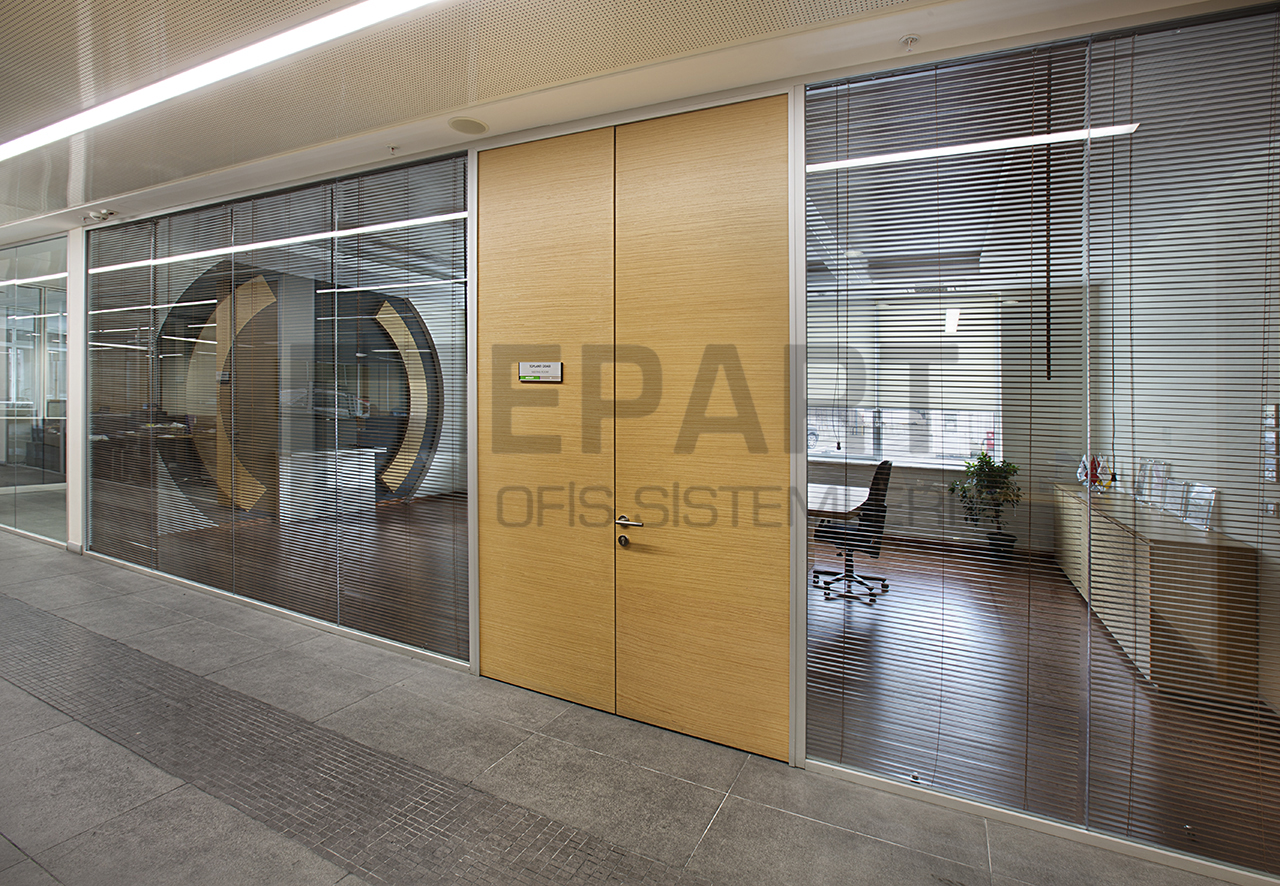

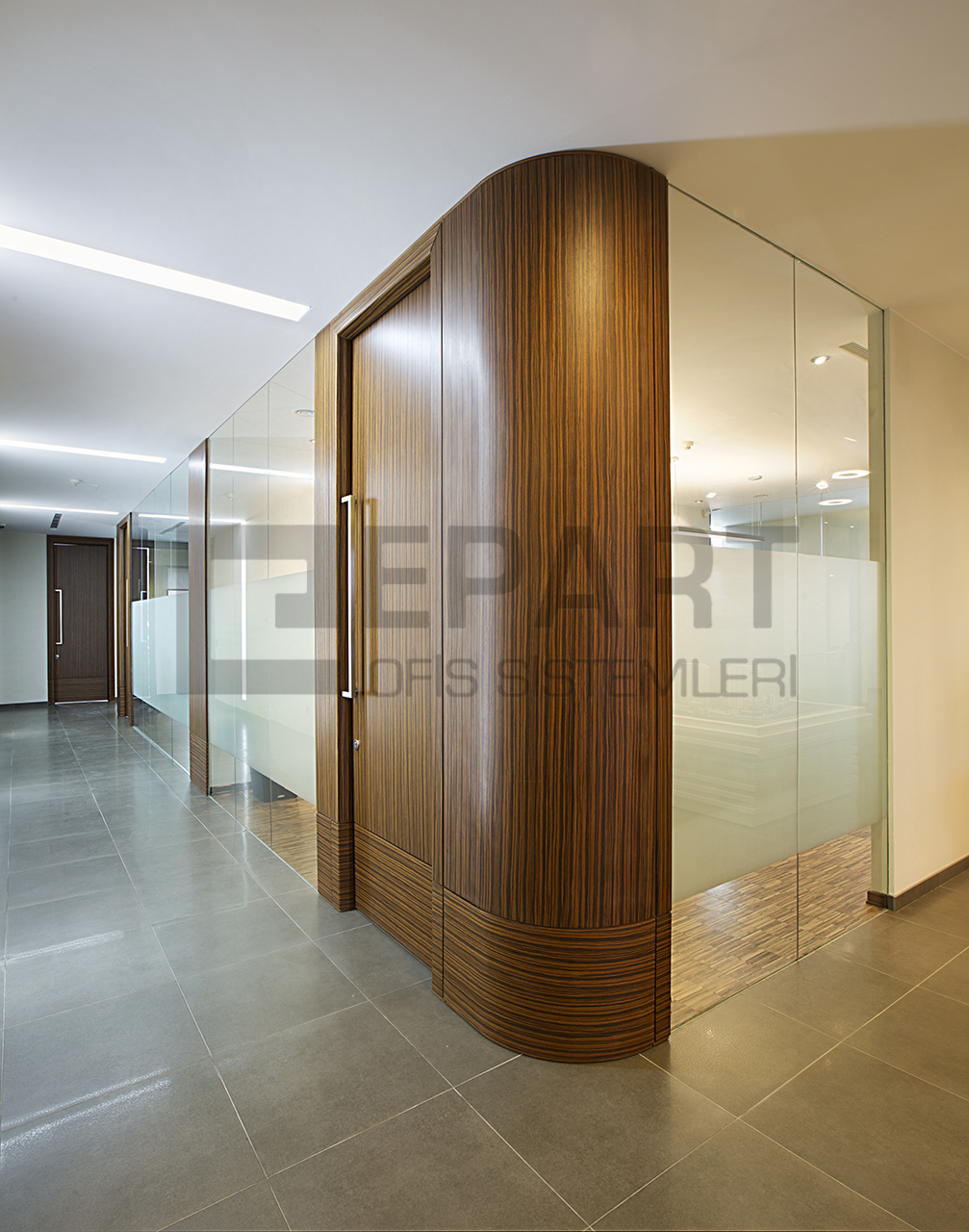

The door modules are designed as one unit up to the ceiling, thus strengthening the space and adding depth.

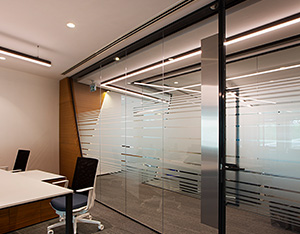

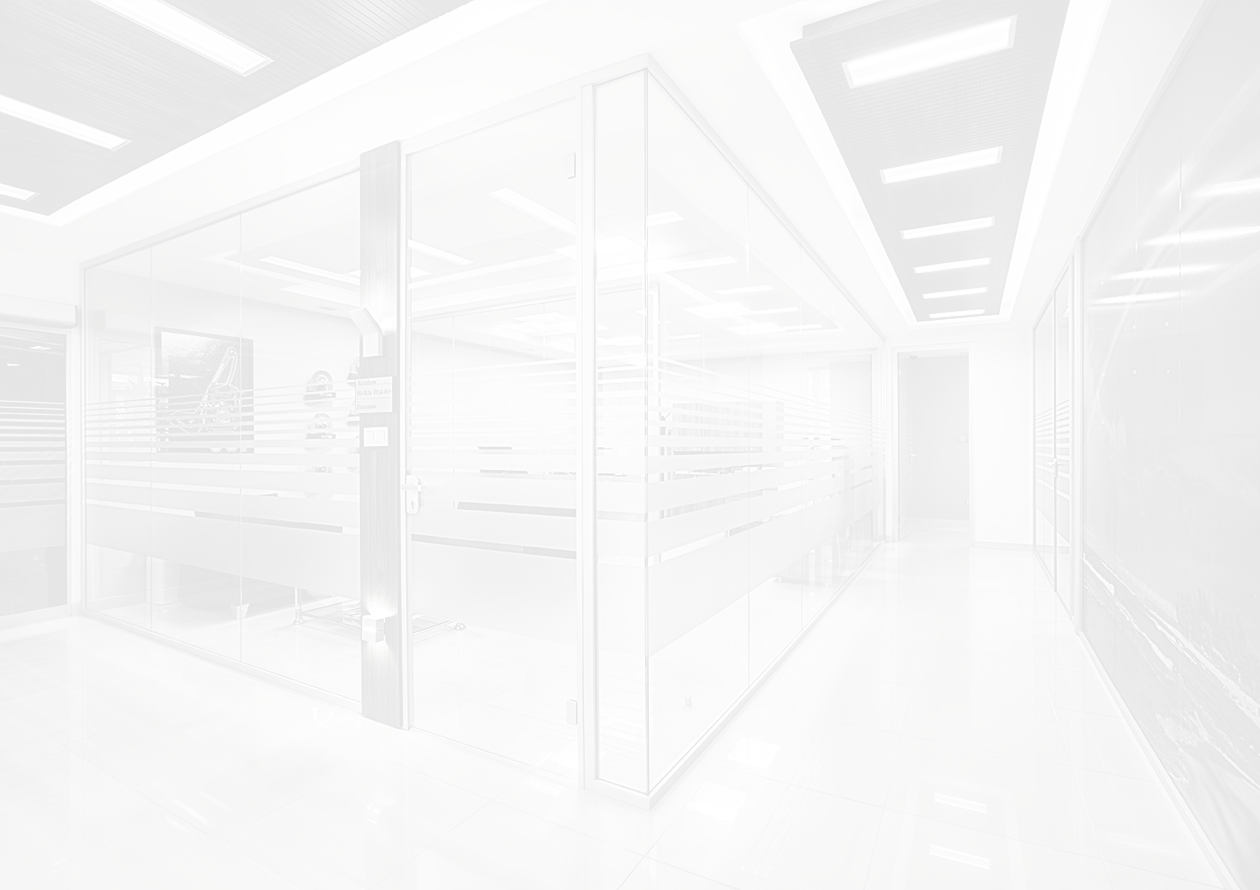

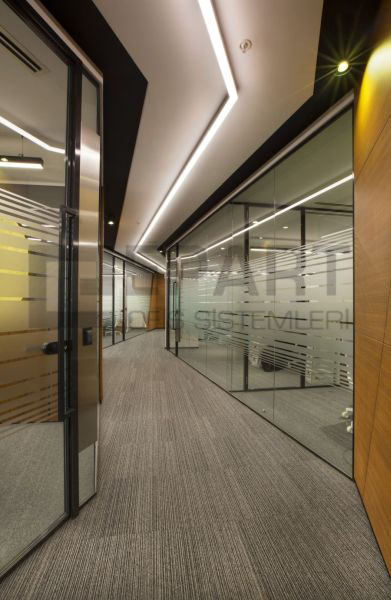

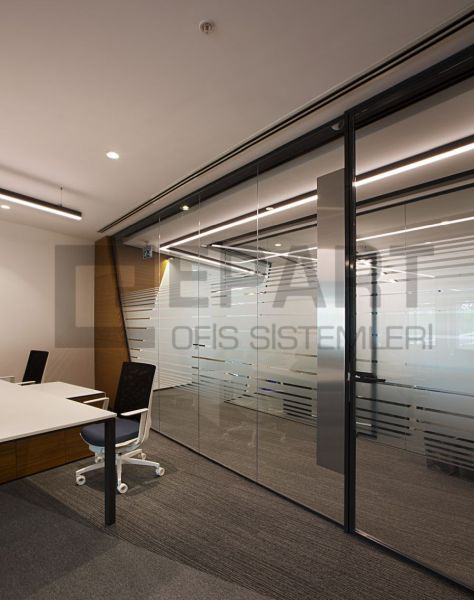

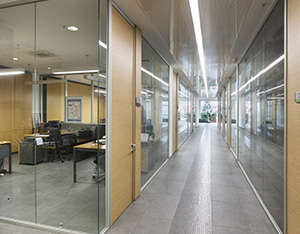

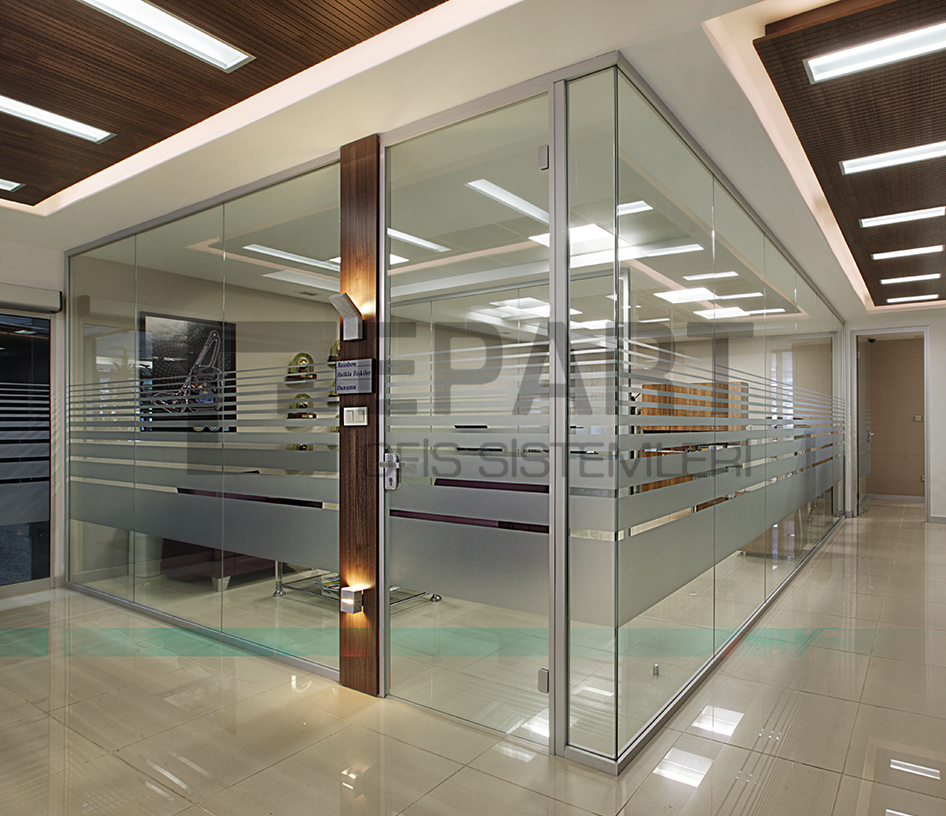

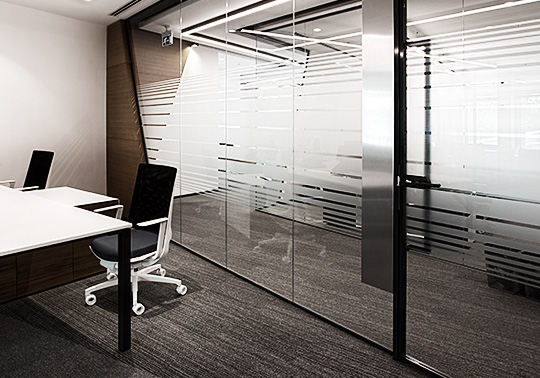

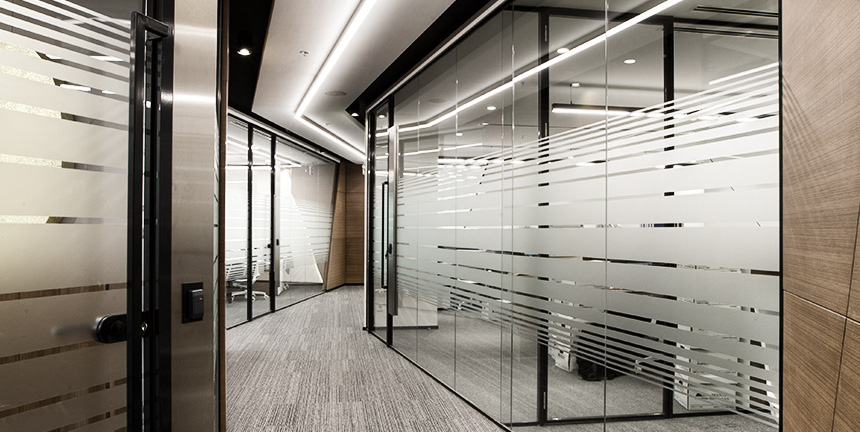

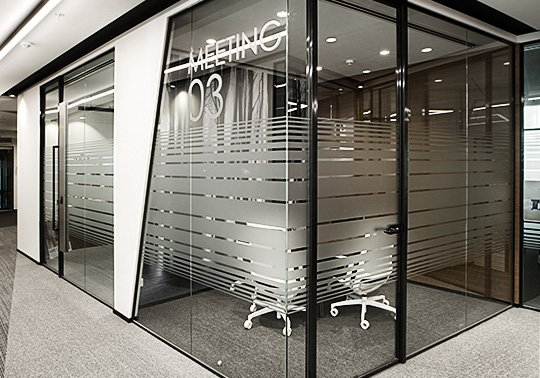

Single glazed glass to glass system

New Arkeon

Contact

TECHNICIAL SPECIFICATIONS

System Thickness	35mm or 45mm
Widths	Preferred grids 300 / 600 / 900 / 1000 / 1100 mm
Heights	2100-3250 mm
Weight	25-42 kg/m2
Profile System	Two or three piece anodized or electrostatic painted system profiles
Tolerance	+/- 20 mm in height and width
Glasses	45° or flat ground glass; It can be used as 4+4, 5+5, 6+6 mm laminated or 8, 10, 12 mm tempered glass, foil coating can be applied on the glass.
Vertical Connection	Transparent (I) profile with polycarbonate-based silicone band between two glasses
Sound Insulation	34 db

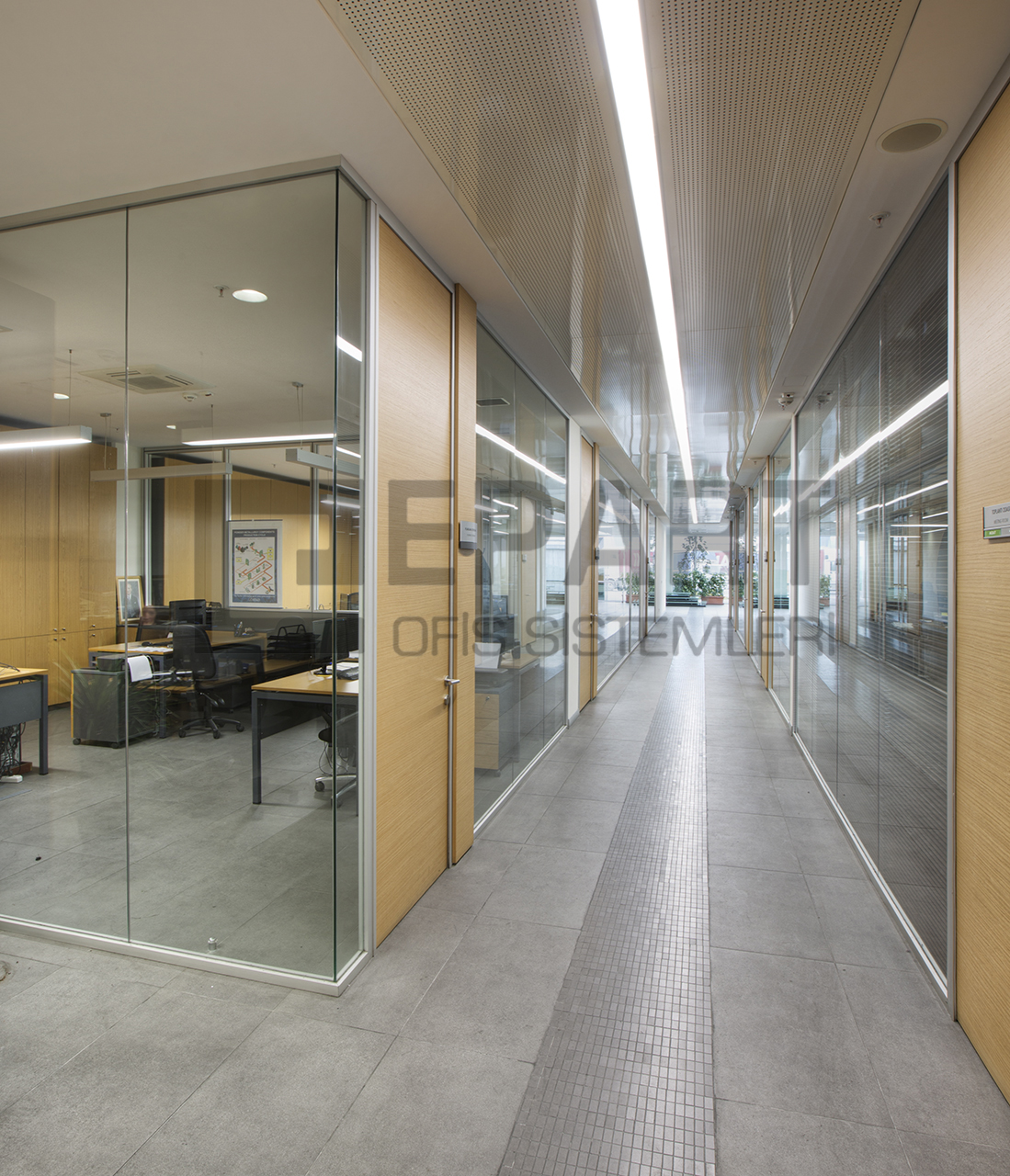

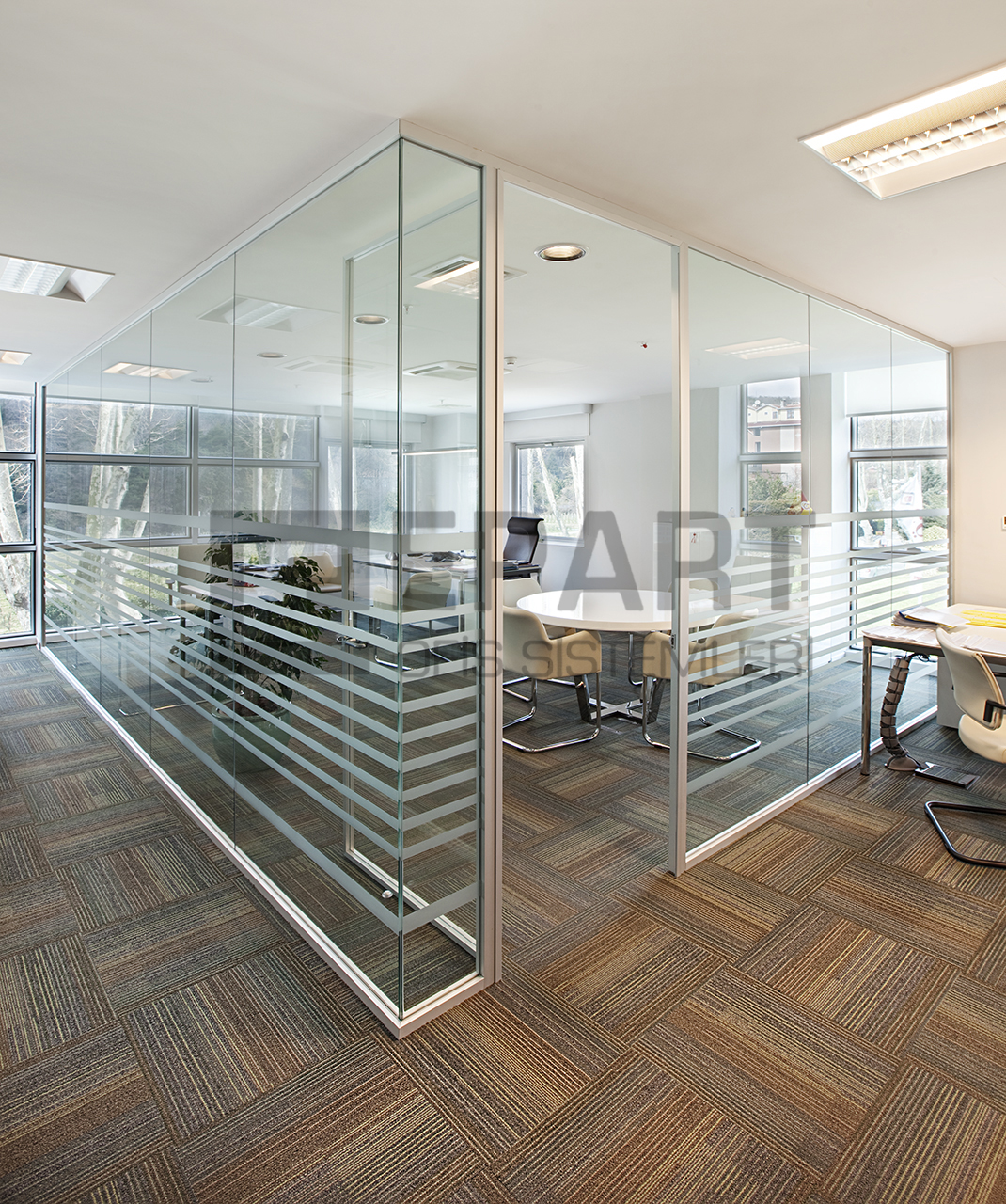

Corner Turns	Glass-to-glass connection
Solid Module	Solid or laminate covered panels on both sides with 1 mm PVC tape
Station Profile	50 x 150 mm, 2 mm thick aluminum profile
Door Frames	Aluminum anodized or electrostatic powder paint
Door Wings	Melamine, laminate, natural veneer and security glass wing
Door Accessories	Barrel lock, aluminum handle, stainless handle etc
Hinge	Aluminum or stainless hinge etc
